$28,000.00
| model |
WP12 |
| Type |
in-line, water-cooled, four-stroke, direct injection |
| Rated Power(HP)@Rated speed (rpm) |
350-550hp@2100 |
| NO. of cylinder |
6 |
| Bore×stroke(mm×mm) |
126×155 |
| NO. of valve/cylinder |
4 |
| Crankshaft rotation direction(look from the free end) |
Clockwise |
| Ignition sequence |
1-5-3-6-2-4 |
| Displacement (L) |
11.596L |
| Rated fuel consumption rate (g/kW.h) |
215 |
| Maximum combustion pressure (MPa) |
16 |
| Compression ratio |
17:1 |
| Oil fuel consumption ratio(%) |
0.4 |
| Starting mode |
Electric starting |
| Charge ratio |
1.85 |
| Idle speed(r/min) |
600±50 |
| Net weight(kg) |
1200 |
| Dimensions L×W×H (mm) |
1695×840×1280 |
| Certificate |
IMO 2 |
| Overhaul time |
12000hours |
| model |
WP12 |
| Type |
in-line, water-cooled, four-stroke, direct injection |
| Rated Power(HP)@Rated speed (rpm) |
350-550hp@2100 |
| NO. of cylinder |
6 |
| Bore×stroke(mm×mm) |
126×155 |
| NO. of valve/cylinder |
4 |
| Crankshaft rotation direction(look from the free end) |
Clockwise |
| Ignition sequence |
1-5-3-6-2-4 |
| Displacement (L) |
11.596L |
| Rated fuel consumption rate (g/kW. h) |
215 |
| Maximum combustion pressure (MPa) |
16 |
| Compression ratio |
17:1 |
| Oil fuel consumption ratio(%) |
0.4 |
| Starting mode |
Electric starting |
| Charge ratio |
1.85 |
| Idle speed(r/min) |
600±50 |
| Net weight(kg) |
1200 |
| Dimensions L×W×H (mm) |
1695×840×1280 |
| Certificate |
IMO 2 |
| Overhaul time |
12000hours |

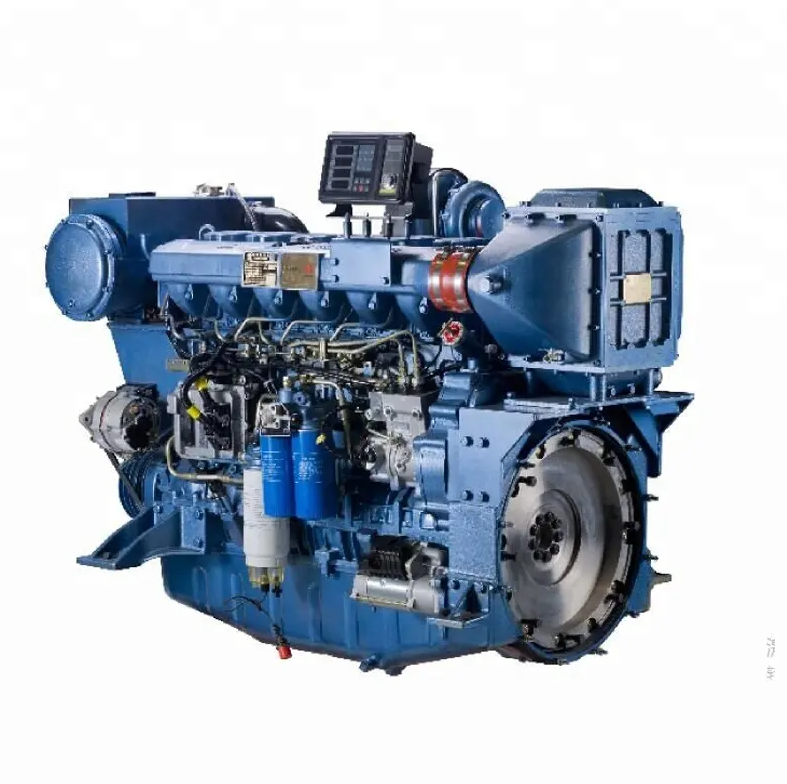

Weichai WP12 500hp marine diesel inboard engine boat motor parts
Upgrade and replacement of new power – five special technologies
Saving fuel: The lowest fuel consumption is 192g/kw•h
Strong power: External characteristic is up to 2100N•m
Environment protect and low noise: Smoke value in range of full load is less than 1.0Rb
| Weight | 1200 kg |
|---|
